Hunter Golf Rotors

Hunter has developed the technology and infrastructure to create a new class of golf irrigation solutions. With their combination of efficiency, durability, and unwavering support, there’s no easier way to keep an immaculate course than with their products in the ground and their people on your side. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there’s no more digging, no more unsightly scars, and more importantly, one less item on a busy superintendent’s schedule.

Hunter G35B

With a wide Range of Performance to choose from, the B Series Rotors are easy on the Budget.

Easy to adjust and maintain, Hunter's G35B golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for short and mid-distance coverage, including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body.

Adjustable arc water lubricated gear-drive
50 to 360 degree adjustable arc range
Arc adjustable anytime; uninstalled, installed or while in operation
QuickSet-360 adjustable arc and non-reversing full-circle in one rotor
Quick check arc mechanism makes arc adjust fast and easy
Closed-case design helps prevent sticking riser and leaking seals
Flexible performance with 8 nozzles to choose from

OPERATING SPECIFICATIONS

Discharge rate:0.43 - 2.91 m3/hr, 7.2 - 48.5 l/min
Radius: 5.5 - 15.2 m
Pressure range: 2.8 - 4.5 Bar, 275 - 450 kPa
Pressure rating: 1000 kPa

Hunter G70 & G75B

Quick Overview

Hunter G70B Full Circle or Hunter G75B Adjustable

Full circle block with check valve

Comes with #25 Nozzle Installed

OPERATING SPECIFICATIONS

Discharge rate: 58.5lts/min to 127lts/min

Radius: 16.2mts to 22.9mts

Pressure range: 50 to 100 PSI (3.4 to 6.9 bars)

Pressure rating: 150 PSI

Hunter G800 Series

Hunter G870E Full Circle

Hunter G875E Adjustable

Hunter G885E Adjustable New Model

Full circle, Electric Valve-in-Head

Comes with # 23 Installed

OPERATING SPECIFICATIONS

Discharge rate: 49.2lts/min to 127.6lts/min

Radius: 16.2mts to 22.9mts

Pressure range: 40 to 100 PSI (3.4bar to 6.9bar)

Pressure rating: 150 PSI

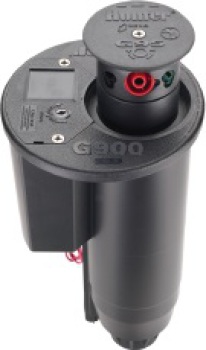

Hunter G900 Series

Hunter G990E Full Circle

Hunter G995E Adjustable

Full circle, Electric Valve-in-Head

Comes with # 53 Installed

Full Circle

OPERATING SPECIFICATIONS

Discharge rate: 130.2lts/min to 297.7lts/min

Radius: 20.7mts to 29.9mts

Pressure range: 40 to 100 PSI (3.4bar to 6.9bar)

Pressure rating: 150 PSI
